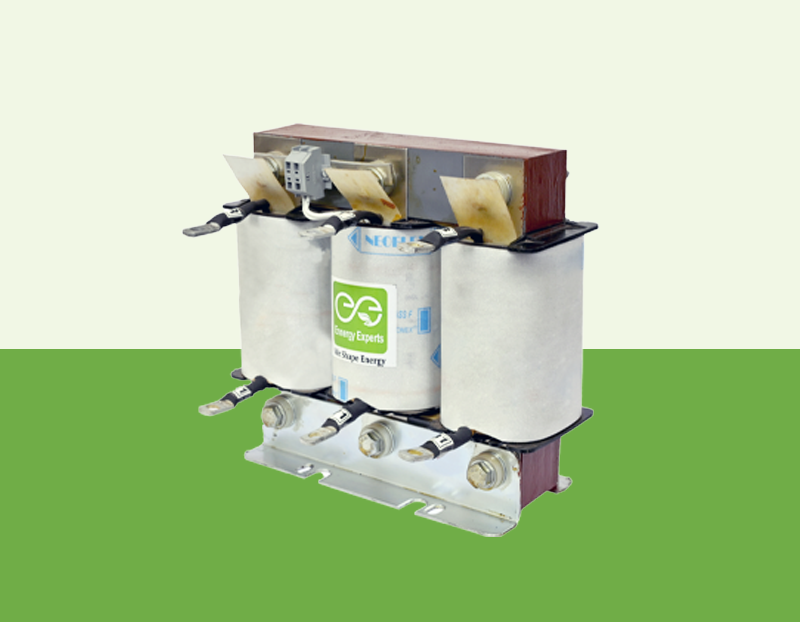

Harmonic Filter Reactors

We are one of the well-known manufacturer & suppliers of Harmonic Filters. Our product is constructed using perfect quality raw material gained from the reliable vendors of the industry. The filters we offer are rigorously pass through specific tests done by our skilled quality auditors, to secure its quality and durability. These are extensively praised by our precious clients for their superior quality. These can be availed by the valuable clients with different specifications at the affordable cost.

Range	Up to 150KVAR
PHASE	3 PHASE
Tuning factor	5.67%, 7%, and 14%
Rated Voltage	415V, 440V, 550V, 690V
Type	Iron core dry type
Conductor	Copper/Aluminium wound

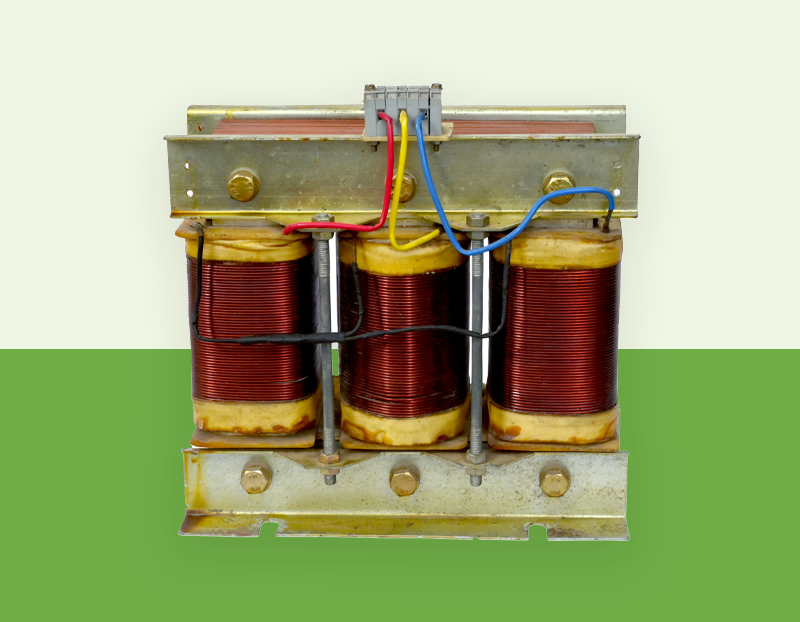

VFD CHOKES

VFD CHOKES offer the advantage of maximizing the circuit inductance for power quality reasons, but without causing an AC input line voltage drop. Link Chokes can be used individually, typically on the positive DC bus, or in pairs with one each on both the positive & negative bus. When two DC Link Chokes are used on the bus, the inductance is additive. You will need twice as much inductance on the DC bus as used on the AC input (per phase) to accomplish the same performance experienced with AC input reactors. For best performance combine the use of both an AC input reactor and a DC Link Choke.

Range	Up to 1000A
PHASE	1 PHASE, 3 PHASE
Percentage Drop	2%, 3%, 4%
Type	Iron core dry type
