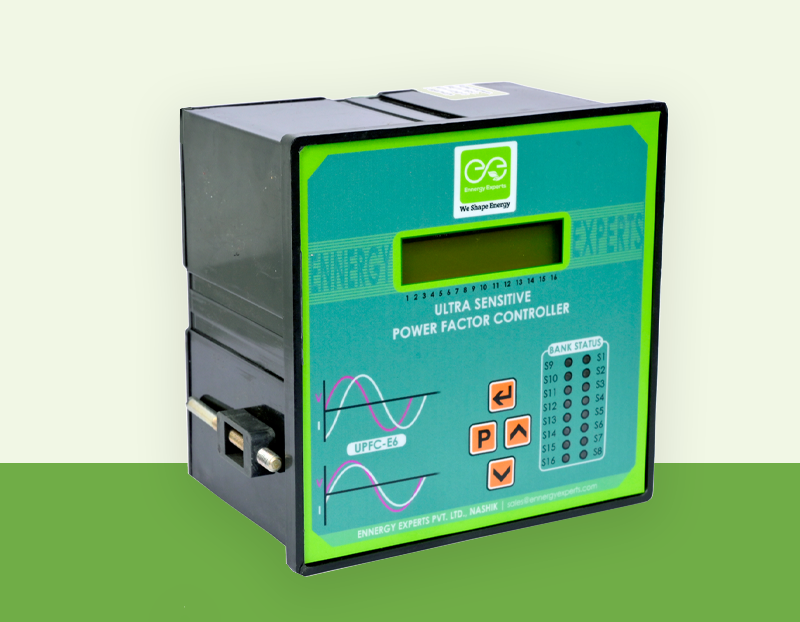

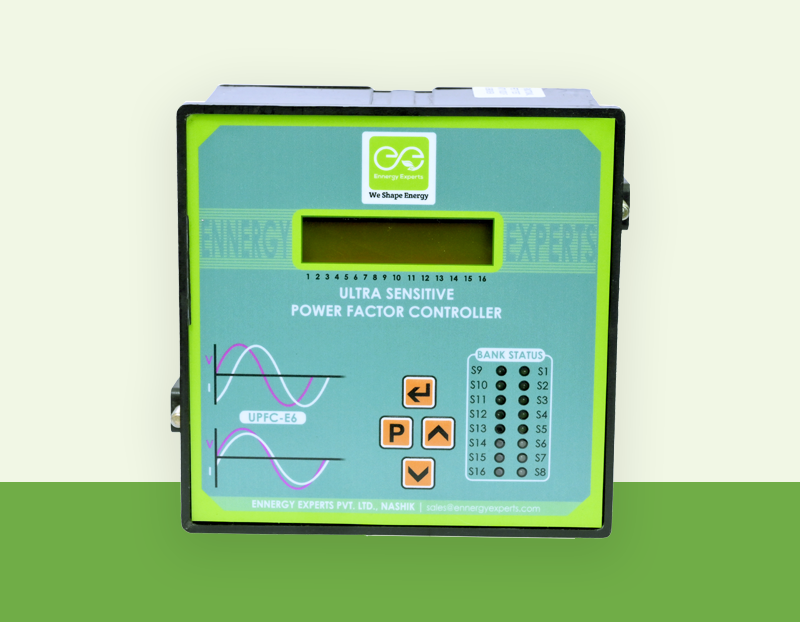

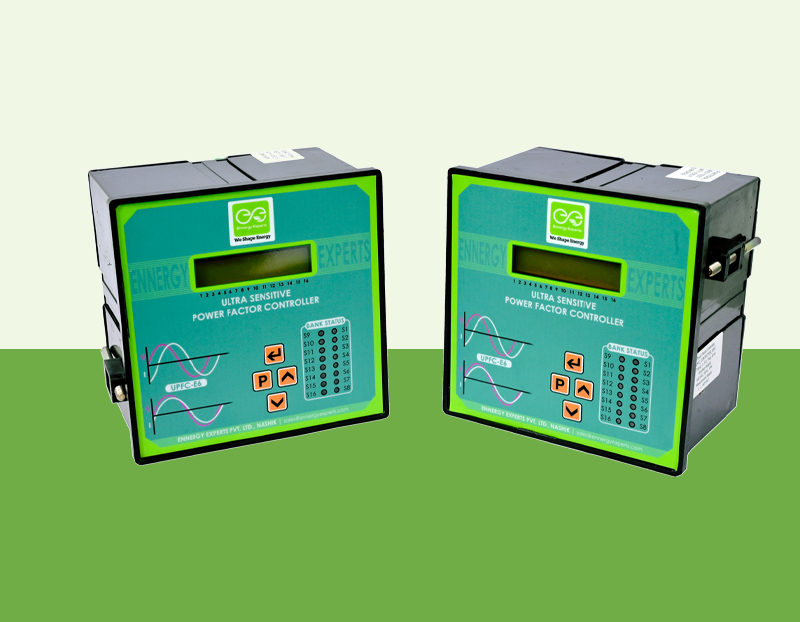

Automatic Power Factor Controller
Features:
  • Measurements are with Class-1 accuracy.
  • Advance Automatic synchronization feature.It is capable of giving correct results even for wrong connections at CT terminals (& also wrong polarity of Cts).
  • Load V,I and THD measurement .
  • Mode for switching: Un-equal (user defined)
  • Capable of doing reactive power measurements on every cycle of the mains waveform.
  • Standard 144 X 144 cabinet for panel door push mounting.
  • Mode for switching: Un-equal (user defined)
  • Capable of doing reactive power measurements on every cycle of the mains waveform.
  • Standard 144 X 144 cabinet for panel door push mounting.
    Event Protections :-
  • Over/under Voltage(OV/UV) Over/Under frequency (OF/UF) Under load(UL). Over Current (OC).Over Temperature (OT).Harmonics Fault.
  • User can configure some of these events for different conditions like:-Indicate, Disable, Trigger(Capacitor) Off,Fast OFF. etc.
    Warnings :
  • Battery Low Indication(BL)
  • Current Over-Load on transformer
  • Battery Fail (BF)
  • over harmonics current (IH)
  • Over harmonics voltage(VH)
Nearby Locations
Location With Excellent Connectivity
  • Measurement Accuracy: Class1.
  • Feed-back Voltage:Nominal 254 V (L-N), 3-Phase, 4-Wire configuration.
  • Current input: 5Amp.
  • Auxiliary Supply: 240 (Line-neutral)(+20% to –30%).
  • Correction time: Selectable in seconds from 1sec. to 2500sec.
  • Output commands: 4. (Isolated ‘NO’ contacts of rating 5Amp ac / 250Vac).
  • Dedicated RS232 port is provided.
  • Operating temperature: 0 to 65oC.
  • RS-232 baud rate selectable up to 38.4kBPS.
  • Class-1 measurement operating temperature: 0 to 50oC.
  • Storage temperature: 0 to +70oC.
  • Humidity: 0 to 95%.
